Pure steam generator Description

Pure steam generators are essential equipment in the pharmaceutical industry, providing sterile, endotoxin-free steam that meets pharmacopoeia standards.

These devices typically employ advanced steam generation technologies, such as thermosyphon principles and centrifugal separation, ensuring steam purity and stability.

Depending on production needs, pure steam is used in equipment and pipeline sterilization, cleaning validation, air humidification, and other processes.

Application

Pure steam generators are widely used in industries such as pharmaceuticals, food and beverages, and cosmetics, primarily for equipment and pipeline sterilization, cleaning validation, air humidification, etc., ensuring that steam quality in production processes meets standards.

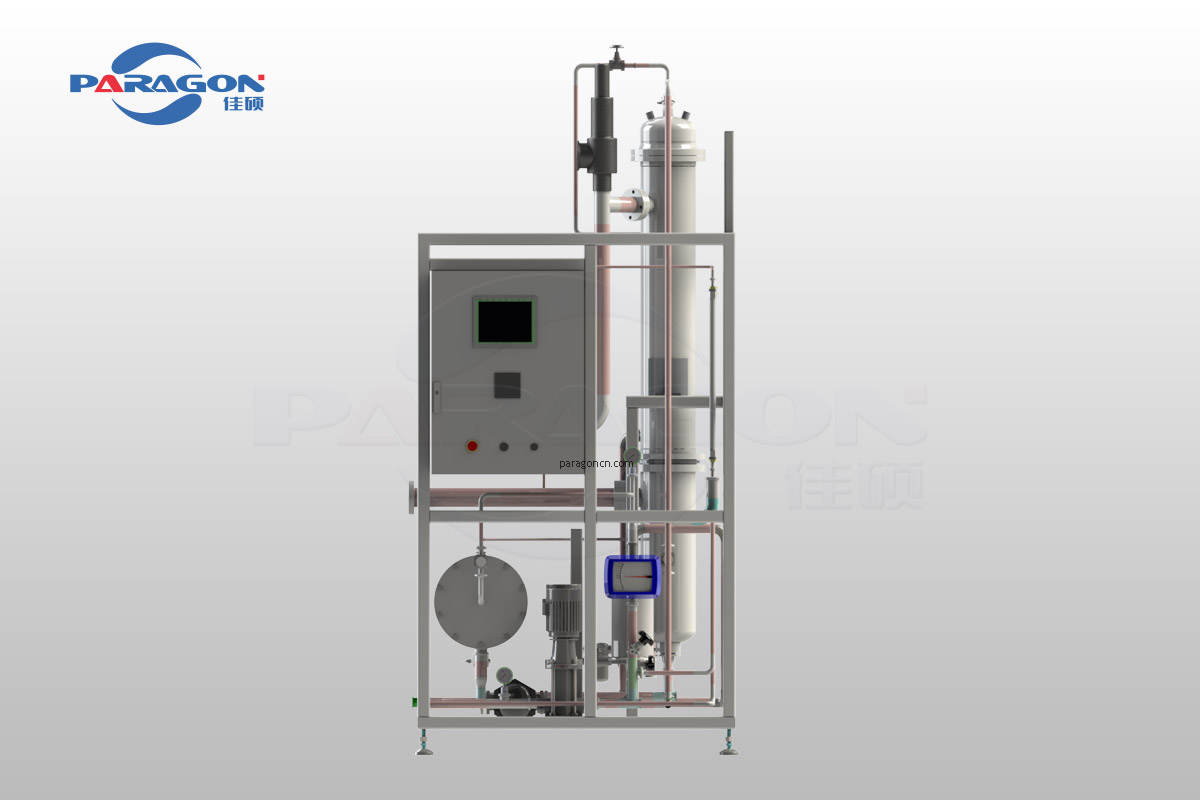

s series pure steam generator
s series pure steam generator

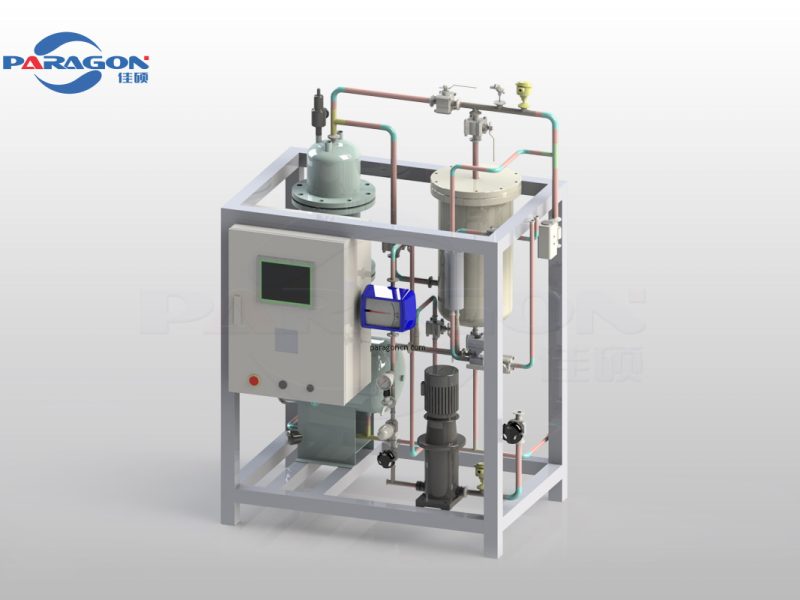

s series pure steam generator 1
s series pure steam generator

Features

Capacity varies from 50 to 3,000 Kg per hour

  • Designed to produce pure steam @ 3 kg/cm² pressure.
  • Designed and manufactured as per ASME BPE and cGMP guidelines.
  • The Pure Steam generated meets EN 285, USP, EP, BP and IP standards.
  • All heat exchange tubes will be seamless quality.
  • Phase separation is based on falling film evaporator technology.
  • Specially designed and constructed to remove pyrogen / endotoxin.
  • Designed and constructed to achieve 100 % drain ability.
  • The unit and all its components are mounted on AISI 304 stainless steel skid.
  • All wetted parts are made from AISI 316L stainless steel and rest are made of AISI 304 stainless steel.
  • All contact parts are finished to electro polished to Ra < 0.4 and are crevice free.
  • IPC & PLC based 21 CFR part 11 complied fully automatic control panel with online printing facility.
  • Double tube sheet construction for the first column, where boiler steam is present.
  • Our compact and optimized design required minimum human interference. This means low maintenance and low operational cost.
  • Complete set of documentation and certificates to ensure compliance with regulatory authority. We provide DQ, OQ, IQ, FAT & SAT. Also assist client to develop PQ.
